TMP 1818-50 Hydraulic Compression Molding Press
Click Here to Download TMP Molding Press Operation Manual
Click Photos to Enlarge

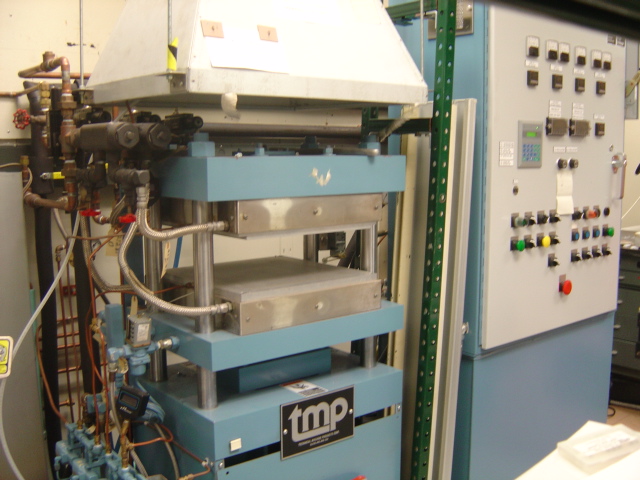

TMP  Hydraulic Compression Molding Press  with PLC Control Panel

Specs of TMP Hydraulic Compression Molding Press:

  • Laminating Press Data
  • Press Capacity: 50 tons
  • Platen Size: 18” x 18”
  • Openings: 6
  • Stroke: 6”
  • Press weight: 2,500 lbs
  • Weight of CONT/HYD/VAC: 2,000 lbs

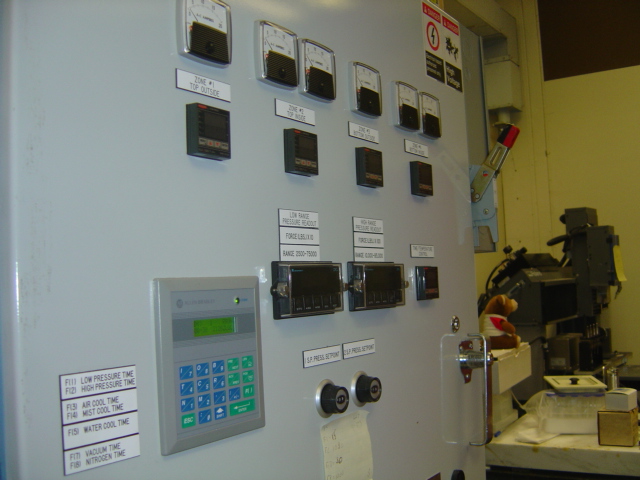

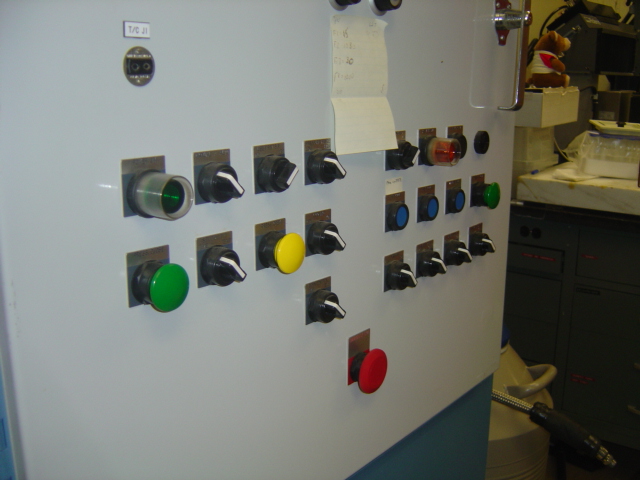

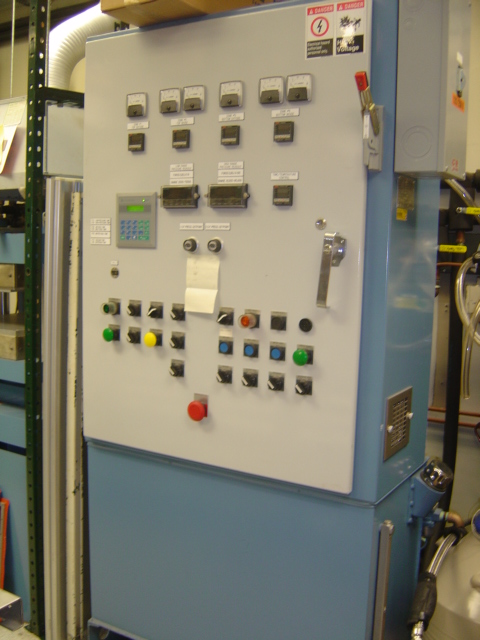

  • PLC control Panel

Water Requirements (Normal Plant Water Supply):

  • Volume: 10 GPM
  • Pressure: 40 PSI max.

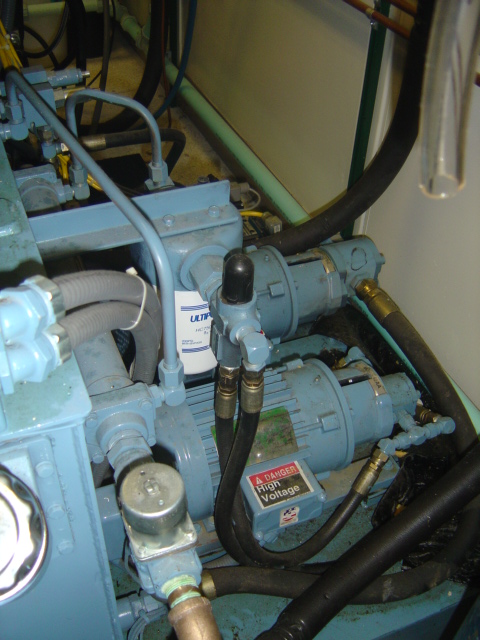

Hydraulic Requirements:

  • Pumps: 2 @ 2 h.p.
  • Reservoir capacity: 30 gal. max.
  • Type: Mobil DTE 25 or Equivalent

Electrical Requirements:

  • Volts/Phase/Hertz: 208V/3ph/60hz
  • Full Load Current: 78 amps
  • Circuit Breaker: 100 amps
